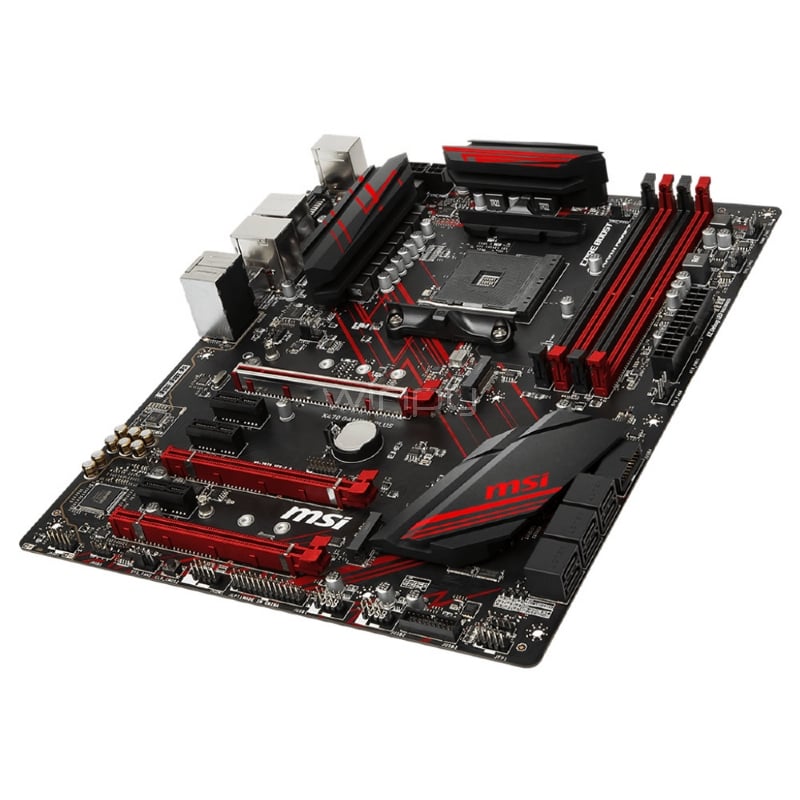

Placa Madre MSI X470 GAMING PLUS (AM4, DDR4 x4, M2 x2, Raid, Crossfire, RGB, ATX)

Placa Madre MSI X470 GAMING PLUS

• Compatible con los procesadores para sobremesa AMD® RYZEN™ y procesadores AMD® A-series / Athlon™ para socket AM4
• Compatible con memorias DDR4-3466+(OC)
• DDR4 Boost: dale un impulso de rendimiento a tu memoria DDR4
• Mystic Light y Mystic Light Sync: 7 colores / 7 efectos en un solo clic. Sincroniza otros componentes RGB para más personalización.
• Experiencia Lightning Fast Game: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2
• Audio Boost con Nahimic: Recompensa tus oídos con una calidad de audio de estudio de sonido para una experiencia de sonido realmente inmersiva.
• Core Boost: Con un diseño de optimización de potencia que soporta más núcleos para proporcionar mejor rendimiento.
• MULTI-GPU: Con ranura STEEL ARMOR PCI-E . Compatible con 3-Way AMD Crossfire™
• VR Ready: Optimiza tu equipo automáticamente para utilizarlo en VR, rindiendo al máximo
• In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
• EZ Debug LED: El camino más sencillo para solucionar los problemas
• Click BIOS 5: Galardonada BIOS con grandes funciones gaming.
• CERTIFICADO GAMING: 24 horas de juego online y offline testeado por jugadores de eSports

PROCESSOR

Supports AMD® Ryzen™ Desktop Processors and AMD® A-Series/Athlon™ Processors for Socket AM4

See supported processors

CHIPSET

• AMD® X470 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE1
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory

1. A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.

See supported memory

SLOTS

• 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
  • Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
  • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors support x8/x0 mode
• 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
• 3 x PCIe 2.0 x1 slots

1. PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

MULTI-GPU

• Ryzen™ Desktop Processors
  • Supports 3-Way AMD® CrossFire™ Technology
• Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
  • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

AMD® X470 Chipset

• 6 x SATA 6Gb/s ports
• 2 x M.2 ports (Key M)1
  • M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (Ryzen™ Desktop Processors ) or PCIe 3.0 x2 (A-series/ Athlon™ Processors) 2242/ 2260 /2280/ 22110 storage devices
  • M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

1. SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
2. PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

ONBOARD GRAPHICS

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1

1. Only support when using Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
2. Maximum shared memory of 2048 MB

USB

ASMedia® ASM1143 Chipset

• 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

AMD® X470 Chipset

• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB connectors
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD® CPU

• 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin PUMP fan connector (supports up to 2A)
• 4 x 4-pin system fan connectors
• 1 x Serial port connector
• 1 x Parallel port connector
• 2 x 5050 RGB LED strip 12V connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x Clear CMOS button

BACK PANEL PORTS

1. PS/2 Combo Port
2. USB 3.1 Gen1
3. LAN Port
4. HD Audio Connectors
5. USB 2.0 Port
6. DVI-D Port
7. HDMI Port
8. USB 3.1 Gen1
9. USB 3.1 Gen2
10. Optical S/PDIF OUT

DIMENSIONS

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

MOUNTING

• 9 mounting holes
