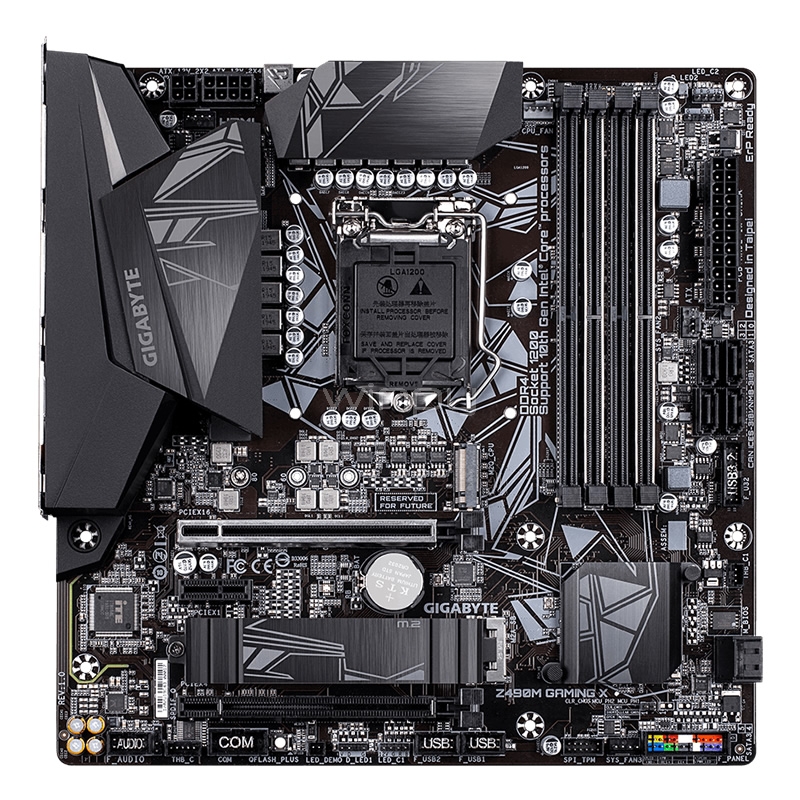

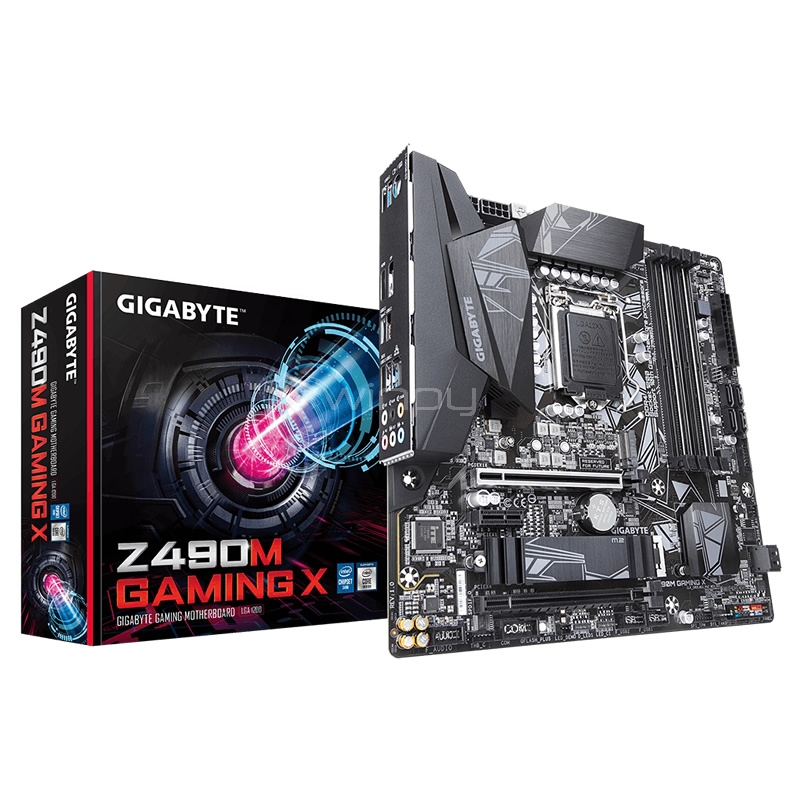

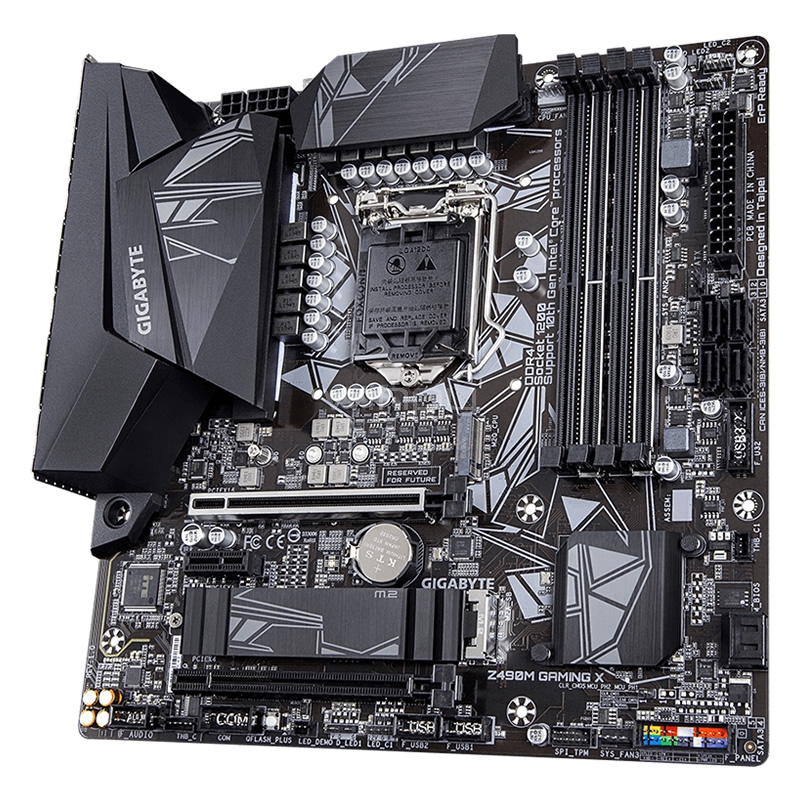

Placa Madre Gigabyte Z490M GAMING X (LGA1200, DDR4 2133/4500MHz, M.2 x2, RAID, RGB, MicroATX)

Placa Madre Gigabyte Z490M GAMING X

• Soporta procesadores Intel Core™ Series de 10a generación
• Solución VRM digital direct 11+1 fases con MOSFET RDS(on) bajo
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMM
• Disipador térmico VRM agrandado con almohadilla conductora térmica de 5W/mK
• Ultra-Fast PCIe Gen3 X4 M.2 con Protección Térmica
• Soporte de gráficos multi-way con armadura dual y diseño ultra durable™
• Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales híbridos del ventilador con FAN STOP
• Intel Optane™ Listo para memoria®
• LAN Intel GbE con software acelerador de Internet cFosSpeed®
• Soporte Intel USB 3.2 Gen2 Tipo-A y USB 3.2 Gen2 Type-C™®
• ALC1200 Audio multicanal con condensadores de audio de alta calidad y protector de ruido de audio
• RGB FUSION 2.0 con diseño de exhibición de luz LED direccionable multizona, LED direccionable de soporte y tiras LED RGB
• Escudo de E/S preinstalado para una instalación fácil y rápida
• Q-Flash Plus Actualizar BIOS sin instalar la CPU, memoria y tarjeta gráfica

Especificaciones

• CPU
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel® Z490 Express Chipset
• Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
  (Please refer "Memory Support List" for more information.)
• Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.
  Maximum shared memory of 512 MB
• Audio
  1. Realtek® ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  Supports up to ASPM L1.2 power management protocols.
• Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  Intel® Optane™ Memory Ready
  M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
• USB Chipset:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  4. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x 8-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 6 x SATA 6Gb/s connectors
  9. 1 x M.2 Socket 3 connector
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x S/PDIF Out header
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 2 x Thunderbolt™ add-in card connectors
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 1 x serial port header
  18. 1 x Clear CMOS jumper
  19. 1 x Q-Flash Plus button
• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 4 x USB 3.2 Gen 1 ports
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 1 x USB 3.2 Gen 2 Type-A port (red)
  6. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  7. 1 x RJ-45 port
  8. 6 x audio jacks
• I/O Controller
  1. iTE® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
