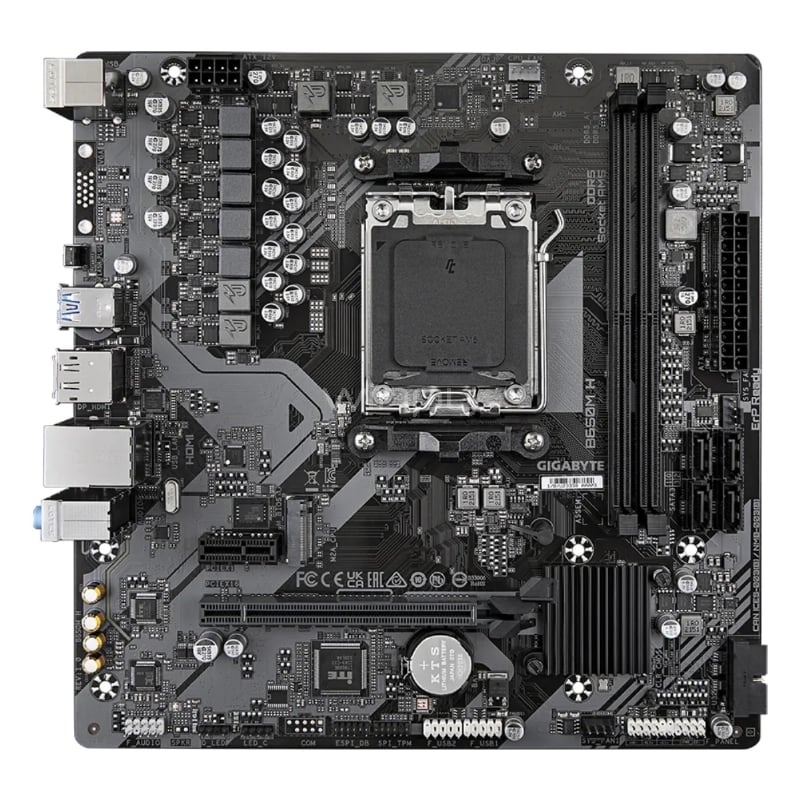

Placa Madre Gigabyte B650M H (AM5, DDR5 4400/6400MHz, M.2, MicroATX)

Placa Madre Gigabyte B650M H

Características Claves

• AMD Socket AM5: compatible con procesadores AMD Ryzen™ serie 7000
• Rendimiento incomparable: solución VRM digital de 5+2+2 fases
• DDR5 de doble canal: 2 * DIMM SMD con compatibilidad con módulos de memoria AMD EXPO™ e Intel® XMP
• Almacenamiento SuperSpeed: Conector PCIe 4.0 x4 M.2
• EZ-Latch: Ranura PCIe x16 con diseño de liberación rápida
• Redes rápidas: LAN GbE
• Conectividad extendida: DP, HDMI
• Smart Fan 6: cuenta con múltiples sensores de temperatura y cabezales de ventilador híbridos con FAN STOP
• Q-Flash Plus: actualice el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

EXPO & XMP Support

DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond*

GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

• STEP 1: Plug 24pin & 8pin power supply cable on motherboard
• STEP 2: Download motherboard BIOS file and rename to ''''gigabyte.bin'''', save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
• STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

• High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users' specified temperature point

Smart Fan 6 BIOS UI

1. Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
2. Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
3. Manual Input: For advanced users, we provide fan speed manual input for more precise control.
4. EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
5. Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

GIGABYTE Control Center

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

• Unified software platform for all Gigabyte supported products
• Intuitive user interface for an eased experience
• Modularized control components only for installed hardware
• Auto update function to keep system up to date and support future products

Procesador	AMD Socket AM5, soporte para: AMD Ryzen™ 7000 Series Processors
Chipset	AMD B650
Memoria	Soporte para módulos de memoria DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
Ranuras de Memoria	2 x DDR5 DIMM, soporta hasta 96 GB (48 GB capacidad de un solo DIMM) de memoria del sistema
Arquitectura de Memoria	Arquitectura de memoria de doble canal
Gráficos Integrados	Procesador de gráficos integrado: 1 x DisplayPort (máx. resolución 3840x2160@144 Hz, versión 1.4), 1 x Puerto HDMI (máx. resolución 4096x2160@60 Hz, versión 2.1)
Audio	Realtek® Audio CODEC, audio de alta definición, 2/4/5.1/7.1 canales
LAN	Chip LAN Realtek® GbE (1 Gbps/100 Mbps/10 Mbps)
Puertos de Expansión	CPU: 1 x Ranura PCI Express x16 (PCIe 4.0, x16), Chipset: 1 x Ranura PCI Express x1 (PCIe 3.0, x1)
Interfaz de Almacenamiento	CPU: 1 x Conector M.2 (Socket 3, clave M, tipo 2580, compatible con SSD PCIe 4.0 x4/x2), Chipset: 4 x Conectores SATA 6Gb/s, soporte RAID 0, RAID 1 y RAID 10 para dispositivos de almacenamiento SSD NVMe y SATA
Puertos USB	CPU: 2 x Puertos USB 3.2 Gen 1 en el panel trasero, 1 x Puerto USB 2.0/1.1 en el panel trasero, Chipset: 2 x Puertos USB 3.2 Gen 1 disponibles a través del encabezado USB interno, 7 x Puertos USB 2.0/1.1 (3 puertos en el panel trasero, 4 puertos disponibles a través de los encabezados USB internos)
Conectores Internos de E/S	Varios conectores, incluyendo alimentación principal ATX de 24 pines, alimentación ATX 12V de 8 pines, encabezados de ventilador de CPU y sistema, encabezados RGB y LED direccionables, conectores M.2, conectores SATA, encabezado frontal, encabezado de audio frontal, encabezado USB 3.2 Gen 1, encabezados USB 2.0/1.1, encabezado del módulo de plataforma segura (TPM), puente Clear CMOS

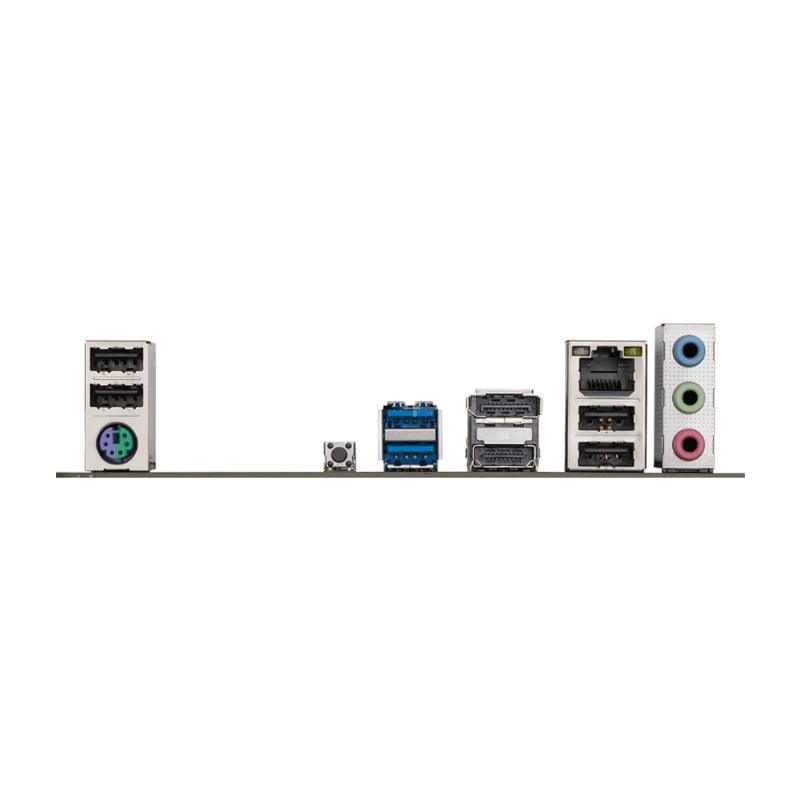

Conectores del Panel Trasero	4 x Puertos USB 2.0/1.1, 1 x Puerto PS/2 para teclado/ratón, 1 x Botón Q-Flash Plus, 2 x Puertos USB 3.2 Gen 1, 1 x DisplayPort, 1 x Puerto HDMI, 1 x Puerto RJ-45, 3 x Tomas de audio
Controlador de E/S	Chip controlador iTE® I/O
Monitorización H/W	Detección de voltaje, detección de temperatura, detección de velocidad del ventilador, detección de caudal de refrigeración líquida, advertencia de fallo del ventilador, control de velocidad del ventilador
BIOS	1 x Flash de 256 Mbit, uso de BIOS UEFI AMI con licencia, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas	Soporte para GIGABYTE Control Center (GCC), Soporte para Q-Flash, Soporte para Q-Flash Plus
Software Incluido	Norton® Internet Security (versión OEM), Software de gestión del ancho de banda de LAN
Sistema Operativo	Soporte para Windows 11 de 64 bits, Soporte para Windows 10 de 64 bits
Diseño	Factor de forma Micro ATX; Dimensiones: 23.0 cm x 22.5 cm
